Shimano Curado 300K vs. Abu Garcia Revo STX: A Head-to-Head Battle

In the world of premium baitcasting reels, both Shimano and Abu Garcia stand as titans, each with a dedicated following. The Shimano Curado series has long been a benchmark for performance and durability, while the Abu Garcia Revo line is renowned for its sleek design and cutting-edge technology. This comparison pits two of their popular models against each other: the workhorse Shimano Curado 300K and the feature-packed Abu Garcia Revo STX. While both are exceptional reels, they are designed with different philosophies and excel in different areas.

Technical Specifications at a Glance

Feature	Shimano Curado 300K	Abu Garcia Revo STX
Gear Ratios	4.7:1, 6.6:1, 8.5:1	6.6:1, 8.0:1
Bearings	5+1	10+1
Weight	10.5 oz	6.6 oz
Max Drag	22 lbs	24 lbs
Line Capacity	14/190, 50/195 (Mono/Braid yds)	12/145, 30/140 (Mono/Braid yds)

Mechanical Differences and Design Philosophy

Shimano Curado 300K:

The Curado 300K is built with a singular focus: power and capacity. Its larger 300-size frame immediately sets it apart from the more standard-sized Revo STX. This reel is designed for throwing big baits, deep-diving crankbaits, and battling large, powerful fish.

The core of the Curado 300K is its HAGANE Body. This is a cold-forged aluminum frame that provides exceptional rigidity and resistance to flexing under heavy loads. This translates to more efficient power transfer and a more solid feel when fighting fish.

Internally, the Curado 300K features Shimano’s MicroModule Gearing. This system uses a greater number of smaller teeth on the main gear and pinion gear. The result is a more precise and smoother gear engagement, leading to a more refined feel on the retrieve. The gears themselves are made of high-quality brass for durability.

For cast control, the Curado 300K utilizes the SVS Infinity braking system. This is a centrifugal system with internal brake weights that can be adjusted on the fly via an external dial. This allows for quick and easy adjustments to changing wind conditions or lure weights without having to open the side plate.

Abu Garcia Revo STX:

The Abu Garcia Revo STX, on the other hand, is built for versatility and a lightweight, ergonomic feel. Its low-profile design and significantly lighter weight make it a comfortable reel for all-day casting.

The Revo STX is constructed with an X2-Cräftic alloy frame, which provides a strong yet lightweight foundation. The side plates are made from C6 carbon, further reducing the overall weight.

Internally, the Revo STX uses a D2 Gear Design. This system focuses on optimizing gear efficiency and durability. The main gear is made of brass, ensuring a good balance of strength and smoothness. While it may not have the “MicroModule” designation, the Revo STX is known for its smooth and powerful retrieve.

For braking, the Revo STX employs the IVCB-6L (Infinitely Variable Centrifugal Brake) system. This is a highly adjustable centrifugal system that uses a series of six locking brake modules. The “L” in the name signifies that these modules lock into place, providing a consistent braking force. Like the SVS Infinity, it features an external dial for fine-tuning.

Drag Systems: A Battle of Power and Smoothness

Shimano Curado 300K:

The Curado 300K is equipped with Shimano’s Cross Carbon Drag, delivering a powerful 22 pounds of maximum drag pressure. This drag system uses a multi-disc arrangement of carbon washers to provide a wide range of smooth and consistent drag performance, even under heavy loads. The large surface area of the carbon washers helps to dissipate heat and prevent drag fade during long fights.

Abu Garcia Revo STX:

The Revo STX counters with its Power Stack Carbon Matrix Drag System, which boasts an impressive 24 pounds of max drag. This system is designed to provide smooth and consistent pressure across the entire drag range. Abu Garcia’s carbon matrix drag is well-regarded for its ability to handle powerful fish without hesitation or jerkiness.

The Verdict on Drag: Both reels offer exceptional drag systems with more than enough power for their intended applications. The Revo STX has a slight edge in terms of maximum drag pressure on paper, but in real-world scenarios, both will perform admirably. The choice between them will likely come down to brand preference and the feel of the drag engagement.

Durability and Longevity

Shimano Curado 300K:

The Curado name is synonymous with durability, and the 300K is no exception. Its HAGANE Body provides a rock-solid foundation that resists torque and impact. The use of brass gearing further enhances its longevity. This is a reel that is built to be a workhorse and can withstand the abuse of heavy-duty fishing.

Abu Garcia Revo STX:

The Revo STX is also a very durable reel. Its X2-Cräftic alloy frame and C6 carbon side plates provide a strong and corrosion-resistant package. The brass gearing is robust, and the overall build quality is excellent. Some users have noted that the finish on earlier Revo models was prone to scratching, but this has been improved in more recent generations.

The Durability Takeaway: Both reels are built to last. The Curado 300K’s larger, all-metal frame may give it a slight edge in terms of sheer brute strength and impact resistance, but the Revo STX is no slouch and will provide years of reliable service with proper care.

Price Point

In terms of price, both reels fall into the upper-mid-range to high-end baitcasting category. Generally, the Abu Garcia Revo STX has a slightly higher manufacturer’s suggested retail price than the Shimano Curado 300K. However, prices can vary depending on the retailer and any ongoing promotions.

Conclusion: Which Reel is Right for You?

Choosing between the Shimano Curado 300K and the Abu Garcia Revo STX ultimately comes down to your primary fishing style and personal preferences.

Choose the Shimano Curado 300K if:

You frequently throw large, heavy baits like big swimbaits, magnum crankbaits, or large spinnerbaits.
You need a reel with a large line capacity for long casts or for targeting fish that make powerful, long runs.
You prioritize a solid, powerful feel and the utmost in rigidity.
You are a fan of Shimano’s SVS Infinity braking system and the smooth feel of MicroModule gearing.

Choose the Abu Garcia Revo STX if:

You are looking for a versatile, all-around baitcasting reel for a wide range of applications.
You value a lightweight, ergonomic design for all-day casting comfort.
You want a highly adjustable braking system and a powerful drag in a compact package.
You appreciate the sleek aesthetics and cutting-edge design of the Revo series.

Both the Shimano Curado 300K and the Abu Garcia Revo STX are exceptional pieces of engineering that will serve any serious angler well. The best choice is the one that best fits your hands, your fishing style, and your confidence on the water.

Posted on by

Clash of Titans: A Technical Showdown Between the Shimano Curado and Daiwa Zillion

In the world of baitcasting reels, two names consistently rise to the top, commanding respect through decades of innovation and on-the-water performance: the Shimano Curado and the Daiwa Zillion. Both are benchmark products at their price points, yet they represent distinct engineering philosophies. The Curado is the undisputed workhorse, lauded for its buttery smoothness and refined reliability. The Zillion is the high-performance casting machine, celebrated for its cutting-edge technology and raw power.

Choosing between them is not about picking a “better” reel, but about understanding the intricate technical differences and aligning them with your specific needs as an angler. This detailed, head-to-head comparison will dissect the core technologies of the latest models to help you make an informed decision.

I. Frame and Body Construction: Rigidity and Materials

The foundation of any quality reel is a rigid frame that resists flex under load, ensuring gears remain perfectly aligned. Both companies tackle this with different material sciences.

Shimano Curado (CoreSolid Body): Shimano utilizes what it calls a CoreSolid Body. On the flagship Curado M, this is a full aluminum HAGANE Body. This one-piece metal frame provides immense rigidity and a feeling of being a single, solid unit in hand. It eliminates the traditional “side plate” construction, integrating the B-side, frame, and front set into a single piece. The gear-side plate is the only separate component. This design minimizes flex and transfers winding power more directly. Lighter components, like the side plate opposite the handle, often use Shimano’s proprietary CI4+ (Carbon Infused) material to reduce overall weight without compromising strength where it’s less critical.
Daiwa Zillion (Hyper Armed Housing): Daiwa employs its Hyper Armed Housing concept, which also utilizes a full aluminum frame and a gear-side plate made of aluminum. This ensures the critical drivetrain components are encased in a rock-solid metal housing. Where Daiwa often differs is its use of ZAION, a high-density “super carbon” material, for the palm-side plate on some models. ZAION is lighter than aluminum but boasts a similar rigidity, offering an excellent strength-to-weight ratio. This strategic use of different materials is a hallmark of Daiwa’s design—metal where needed for gear support, advanced carbon where needed for weight savings and corrosion resistance.

Technical Takeaway: Both reels offer exceptional, tournament-grade rigidity. Shimano’s CoreSolid Body provides a uniquely solid, one-piece feel, while Daiwa’s Hyper Armed Housing achieves a similar result with a more multi-material, weight-optimized approach.

II. Gearing Systems: The Heart of the Reel

The gearing determines a reel’s smoothness, power, and long-term durability. This is an area of significant philosophical difference.

Shimano Curado (MicroModule Gearing): Shimano’s pursuit is ultimate smoothness. They achieve this with MicroModule Gearing. This technology involves creating main and pinion gears with a significantly higher number of smaller, more precisely cut teeth. This increased number of contact points between the gears distributes the load more evenly, virtually eliminating gear “vibration” or noise during the retrieve. The result is the signature, silky-smooth feel the Curado is famous for. The gears are typically made from cold-forged brass for a balance of smoothness and durability.
Daiwa Zillion (Hyperdrive Digigear): Daiwa’s focus is on power, connection, and durability. Their Hyperdrive Digigear system takes a different approach. The gear teeth are larger and have been redesigned with an advanced tooth profile that improves the gear mesh and reduces power loss. This design creates a more connected, powerful feel. While exceptionally smooth, it prioritizes the efficient transfer of power over the whisper-quiet retrieve of MicroModule. The main gear is often made of a super-hardened G1 Duralumin, an advanced aluminum alloy that is lighter than brass but incredibly strong, reducing startup inertia.

Technical Takeaway: Choose the Curado for an unmatched, refined smoothness that feels almost frictionless. Choose the Zillion for a more powerful, direct, and connected feel that telegraphs everything the lure is doing.

III. Braking Systems: The Casting Engine

This is arguably the most significant differentiator in how these reels perform on the water.

Shimano Curado (SVS Infinity): The Curado uses the SVS Infinity system, a highly refined centrifugal braking system. It works by using brake weights that sling outward due to centrifugal force during the cast, rubbing against a friction race (the “brakeway”) to control spool speed.
- How it Works: It features four internal brake weights that can be turned on or off. Fine-tuning is accomplished via a large, external dial with micro-adjustments.
- Performance: SVS Infinity provides a very linear and predictable braking curve. It excels at allowing a skilled angler to feather the cast and achieve maximum distance with a specific lure weight once dialed in. It’s particularly effective for skipping and pitching, where precise, short-range control is needed.
Daiwa Zillion (SV BOOST System / Magforce-Z): The Zillion is famous for its SV (Stress-Free Versatile) Spool concept, which is paired with an advanced magnetic braking system. The latest iteration is the SV BOOST system.
- How it Works: This is a two-stage magnetic system. A magnetic inductor rotor moves into and out of a magnetic field to apply braking pressure. In the SV BOOST system, the inductor pops out in two stages. The first stage applies stronger braking at the very beginning of the cast when the spool is fastest and most likely to backlash. As the spool slows, the inductor automatically retracts slightly, reducing braking force to allow the lure to fly farther during the latter half of the cast.
- Performance: The SV system is incredibly user-friendly and versatile. It allows anglers to cast a huge range of lure weights, even into the wind, with minimal thumbing and adjustment. It’s the ultimate “set it and forget it” system for maximizing casting distance across various applications without fear of backlashing.

Technical Takeaway: The Curado’s SVS Infinity offers granular control for the angler who likes to tune their reel perfectly for a given technique. The Zillion’s SV BOOST is for the angler who prioritizes maximum trouble-free casting distance and wants to switch between lures of different weights frequently without constantly adjusting the brakes.

IV. Casting Enhancement Technologies

Beyond braking, other features contribute to casting performance.

Shimano Curado (SilentTune & Super Free Spool): Shimano uses SilentTune to reduce spool vibration by adding small springs that apply slight pressure to the spool bearings, ensuring they stay perfectly aligned during high-speed rotation. Super Free Spool is a pinion gear design that eliminates friction on the spool shaft during the cast.
Daiwa Zillion (T-Wing System – TWS): The Zillion’s ace in the hole is the T-Wing System (TWS). On the retrieve, the line is funneled through the narrow “T” for level winding. On the cast, the entire top of the “T” hood rotates forward, creating a massive, wide aperture for the line to exit. This drastically reduces the sharp angle and friction created by a traditional line guide, allowing the line to flow off the spool with unprecedented freedom. This is a primary contributor to the Zillion’s legendary casting distance.

Technical Takeaway: The TWS is a significant mechanical advantage for Daiwa in terms of raw casting distance. Shimano’s technologies focus more on refining the smoothness and stability of the cast.

Head-to-Head Technical Specifications (Typical M / 150 Size Models)

Feature	Shimano Curado 150 MGL	Daiwa Zillion SV TW
Frame Material	Aluminum CoreSolid Body	Aluminum Hyper Armed Housing
Gearing System	MicroModule Gearing (Brass)	Hyperdrive Digigear (Duralumin)
Braking System	SVS Infinity (Centrifugal)	SV BOOST (Magnetic)
Casting Tech	SilentTune, Super Free Spool	T-Wing System (TWS), SV Spool
Bearings	6+1	8+1
Typical Weight	~6.5 oz (185g)	~6.7 oz (190g)
Max Drag	~13 lbs	~11 lbs

Conclusion: Which Titan is Right for You?

There is no winner, only the right tool for the job.

Choose the Shimano Curado if:

You prioritize a refined, buttery-smooth retrieve above all else.
You are a “tinkerer” who enjoys dialing in your reel’s braking for pinpoint accuracy.
You do a lot of short-range, accurate casting techniques like skipping docks or pitching to cover.
You value a proven, reliable workhorse that feels like a single, solid piece of machinery in your hand.

Choose the Daiwa Zillion if:

Your primary goal is maximum, effortless casting distance with a variety of lures.
You frequently fish in windy conditions and want to minimize backlashes.
You value a connected, powerful gear feel that lets you know what your lure is doing.
You are drawn to cutting-edge technology like the TWS that provides a tangible performance advantage.

Posted on by

The Workhorse, Redefined: A Detailed Look at the Daiwa Tatula Baitcast Reel

In the fiercely competitive world of baitcasting reels, few names command as much respect and ubiquity as the Daiwa Tatula. Since its introduction, the Tatula family has become a benchmark for performance, durability, and innovation, earning a place on the decks of countless tournament professionals and weekend warriors alike. It is a series built on a foundation of cutting-edge technology and a commitment to providing tangible, on-the-water benefits.

This detailed article will take you deep inside the Daiwa Tatula series. We will explore the revolutionary mechanical features that define its performance, break down the powerhouse drag system, and examine the different models to understand why this reel has become a modern classic.

The Foundation: An Aluminum Frame

Before diving into the proprietary technologies, it’s crucial to understand the reel’s backbone. Every Tatula reel is built around a rigid, all-aluminum frame. In an industry where graphite composites are often used to cut costs and weight, Daiwa’s commitment to a full metal chassis is a key differentiator. This rigidity is paramount. Under the heavy torque of a deep-diving crankbait or the strain of a powerful hookset and fight, an aluminum frame prevents flex. This ensures that the internal gears and components remain in perfect alignment, leading to smoother, more efficient power transfer, increased durability, and a longer lifespan for the reel.

Core Mechanical Features: The Tatula Technology Suite

What truly sets the Tatula apart is its suite of innovative features, designed to solve common casting and fishing problems.

T-Wing System (TWS): The Revolution in Line Flow

The most visually distinct and arguably most impactful feature of the Tatula is the T-Wing System. This revolutionary line guide design addresses a fundamental problem with traditional baitcasters: the friction and sharp line angle created as the line funnels through a small, circular guide during a cast.

How it Works: The TWS features a T-shaped line guide that operates in two positions. During line retrieval, the “T” is lowered, and the line flows through the narrow lower channel, ensuring it is laid evenly across the spool. The magic happens during the cast. When you depress the thumb bar, the “T” hood pops up, allowing the line to flow freely through the wide upper section of the “T”.
The Benefit: By eliminating the sharp angle and friction point of a traditional guide, the TWS allows line to fly off the spool with unprecedented ease. This results in a significant, measurable increase in casting distance and accuracy. Furthermore, the smoother exit reduces line “slap” and noise, while also minimizing the potential for backlashes, as the line flow is far less turbulent. It is a simple concept with a profound effect on casting performance.

Zero Adjuster: Perfect Spool Tension, Simplified

For decades, anglers were taught to meticulously adjust the spool tension knob to prevent backlash. Daiwa’s Zero Adjuster system throws that conventional wisdom out the window.

How it Works: The Tatula’s spool tension knob is factory-set to the optimal position for minimizing side-to-side spool play while maximizing casting performance. As the name implies, the angler’s job is to “zero” their input—you simply don’t touch it. All cast control adjustments are then made exclusively with the magnetic braking system.
The Benefit: This feature removes a significant variable from the casting equation, simplifying setup and allowing for quicker adjustments on the water. Anglers no longer need to constantly fiddle with the tension knob when changing lure weights. You simply tie on a new bait, adjust the magnetic dial, and cast. It makes the reel more user-friendly, especially for those new to baitcasters, and more efficient for experienced anglers.

Magforce-Z and the SV Concept: Intelligent Cast Control

The Tatula series employs Daiwa’s sophisticated magnetic braking system, known as Magforce-Z. This system uses an inductor cup that moves in and out of a magnetic field to apply resistance to the spool, preventing overruns.

For an even higher level of control, many Tatula models feature the SV (Stress-Free/Versatile) Concept. The SV spool is crafted from ultra-lightweight G1 Duralumin and is paired with a highly refined magnetic braking system. The inductor cup on an SV spool reacts more quickly and efficiently to changes in spool speed. It applies strong magnetic braking automatically at the beginning of the cast when the spool is spinning fastest (and most likely to backlash), then smoothly retracts as the spool slows, reducing brake pressure to maximize distance at the end of the cast. The result is a reel that can cast lightweight finesse baits and heavy jigs with equal poise and an almost supernatural resistance to backlashes.

The Powerhouse Drag: Ultimate Tournament Drag (UTD)

A powerful and smooth drag system is non-negotiable, and the Tatula series employs Daiwa’s Ultimate Tournament Drag. This is not just a collection of washers, but a complete system designed for performance.

Mechanical Composition: The UTD system utilizes oversized, carbon fiber drag washers. Carbon fiber is the premium material for drag systems due to its ability to dissipate heat effectively and resist “sticking” or inertia. The system is also impregnated with Daiwa’s proprietary drag grease, which further enhances its smoothness and consistency.
Performance: The key characteristic of the UTD is its incredibly low startup inertia. When a fish makes a sudden, powerful run, the drag engages instantly and smoothly, without the hesitation or jerk that can snap a line or pull a hook. This allows anglers to fish with confidence, knowing their drag will protect their line and absorb the shock of a thrashing fish.

Drag Ratings Across the Series

The maximum drag pressure varies by model, tailored to the reel’s intended application:

Daiwa Tatula 100/150: 11 lbs (5.0 kg)
Daiwa Tatula SV TW103: 11 lbs (5.0 kg)
Daiwa Tatula Elite: 11 lbs (5.0 kg)
Daiwa Tatula 200: 13.2 lbs (6.0 kg)
Daiwa Tatula 300: 24.3 lbs (11.0 kg) for the aluminum drag star model, and up to 28.7 lbs (13.0 kg) for the model with the 110mm power handle.

These ratings are more than sufficient for their intended targets, from largemouth bass to powerful pike, musky, and inshore species. The emphasis is less on sheer stopping power and more on the smooth, consistent, and reliable application of that power.

A Tour of the Tatula Family

While they share core technologies, the different Tatula models are specialized tools for specific jobs.

Tatula 100/150/200: This is the original workhorse and the heart of the lineup. It offers the core TWS and Zero Adjuster features in a compact, 100-size frame. The 150 and 200 sizes offer increased line capacity for heavier lines and techniques like deep cranking or A-rigs. It’s the go-to choice for all-around performance.
Tatula SV TW103: The “SV” stands for Stress-Free/Versatile, and this reel is the casting wizard of the family. Incorporating the SV Spool and its advanced braking, this model is designed to cast a wider range of lure weights—especially lighter ones—with minimal fear of backlash. It is the ultimate tool for skipping docks, casting into the wind, and achieving maximum finesse.
Tatula Elite: Designed with input from Daiwa’s elite pro staff, this model is a finely-tuned version of the Tatula. It often features specific gear ratios preferred by pros for certain techniques (like a slower ratio for cranking or a faster one for flipping) and subtle ergonomic enhancements. It’s the reel for the angler who wants a tool perfected for a specific application.
Tatula 300: This is the beast of the family. A true 300-size reel, it’s built for heavy-duty applications. With a deep spool for massive line capacity, a powerful drag, and a heavy-duty brass gear train, the Tatula 300 is designed for throwing magnum swimbaits, deep-diving crankbaits, and tackling species like musky, pike, and even saltwater brutes.

In conclusion, the Daiwa Tatula series is more than just a single reel; it’s a complete ecosystem of baitcasting performance. By combining a rock-solid aluminum frame with a suite of game-changing technologies like the T-Wing System and Zero Adjuster, and backing it all with a smooth and powerful UTD drag, Daiwa has created a reel that is both innovative and incredibly reliable. Whether you are a beginner looking for a user-friendly experience or a seasoned pro demanding a specialized tool, there is a Tatula built to exceed your expectations.

Posted on by

The Apex Predator: Team Lew’s Pro-Ti Baitcast Reel

In the hyper-competitive arena of professional bass fishing, equipment is more than just a tool; it’s an extension of the angler’s will. For those who demand the absolute pinnacle of performance, where weight, strength, and precision are measured in fractions and seconds, Lew’s has engineered a flagship reel that stands as a testament to modern technology: the Team Lew’s Pro-Ti SLP Baitcast Reel. This is not just another reel in the lineup; it is a statement piece, a marvel of mechanical engineering designed from the ground up for elite-level performance.

This detailed article will delve into the mechanical heart of the Pro-Ti, exploring its advanced features, robust construction, and formidable drag system that make it a top-tier choice for serious anglers.

The Foundation: A Masterpiece of Strength and Lightness

The first impression of the Pro-Ti is one of compact, refined power. This is achieved through Lew’s proprietary SLP (Super Low Profile) platform, which provides an incredibly ergonomic feel that palms comfortably, reducing fatigue over a long day of casting. But beneath this sleek exterior lies a framework of immense strength.

The reel is built around a one-piece aluminum frame, the backbone that ensures all internal components remain in perfect, flex-free alignment under the heaviest loads. This rigidity is critical for both cranking power and long-term durability. The sideplates are crafted from lightweight yet durable carbon, a strategic choice to shave precious weight without compromising integrity.

What truly sets the Pro-Ti apart visually and functionally is its finish. The reel is coated using a titanium deposition process, resulting in a stunning metallic sheen that is incredibly hard and scratch-resistant. This isn’t mere paint; it’s a specialized treatment that bonds a layer of titanium to the aluminum frame, providing a formidable barrier against the bumps, scrapes, and harsh conditions of tournament fishing.

The Mechanical Heart: Precision Gearing and Casting Control

The soul of the Pro-Ti lies in its meticulously engineered internals, designed for unparalleled smoothness, casting distance, and control.

P1 Super Pinion and Hamai CNC Gearing

At the core of its retrieval system is the P1 Super Pinion gear. This is a concept Lew’s has perfected for rock-solid gear engagement. The pinion gear is precisely supported to ensure it remains perfectly meshed with the main gear at all times. This eliminates gear slop and ensures that every turn of the handle translates directly into cranking power. The main gear itself is a work of art—a hard-anodized aluminum drive gear cut with industry-leading Hamai CNC machines. This Japanese precision machining creates gear teeth with impossibly tight tolerances, resulting in a retrieve that feels liquid-smooth and exceptionally powerful right out of the box.

The 11-Bearing System

The Pro-Ti glides on an 11-bearing system featuring double-shielded stainless steel ball bearings. These high-quality bearings are placed strategically throughout the reel, from the spool shaft to the handle knobs, ensuring a fluid and frictionless operation. The addition of a Zero Reverse one-way clutch bearing provides instant, rock-solid anti-reverse for powerful hooksets with no back play.

The Adjustable Centrifugal Brake (ACB) System

For casting control, the Pro-Ti employs Lew’s highly tuneable externally Adjustable Centrifugal Brake (ACB) system. This is a 6-pin system that can be adjusted without removing the sideplate. A simple external dial allows the angler to fine-tune the braking pressure to match lure weight, wind conditions, and casting style. This gives the angler the ability to maximize casting distance while minimizing the risk of professional overruns (backlashes), a crucial feature when skipping docks or making long-distance bomb casts.

The Drag System: Power on Demand

Perhaps the most impressive specification on the Pro-Ti’s stat sheet is its powerful and refined drag system. Lew’s has engineered this reel to handle heavy cover and powerful fish with a maximum drag rating of 20 pounds.

This substantial stopping power is generated by a multi-material drag stack that typically includes a combination of carbon fiber and stainless steel washers. This system is designed to be both powerful and smooth. It engages without hesitation and dissipates heat effectively during long, surging runs from big fish. The audible-click star drag is ergonomically designed for easy adjustments in the heat of battle, allowing the angler to quickly ramp up or decrease pressure as needed. A 20-pound drag rating in a reel this lightweight and compact is a significant engineering feat, giving anglers the confidence to use heavy braided lines and winch fish out of the thickest vegetation or heaviest cover without fear of the drag slipping.

Angler-Focused Innovations

Beyond the core mechanical features, the Pro-Ti is packed with thoughtful details that enhance the user experience on the water.

Speed Dial Line Indicator: This patented feature is a simple yet brilliant innovation. A small dial on the thumb bar allows the angler to set and remember what type of line (mono, fluoro, braid) and what pound test is spooled on the reel. This is invaluable for tournament anglers who may have a dozen identical-looking combos on their deck, eliminating guesswork and costly mistakes.
Speed Knot Quick Line Attachment Spool: The 32mm, bowed, and drilled aluminum spool is designed for quick and easy line tying. A small slot allows the angler to tie a knot and have it seat perfectly without slipping, making re-spooling on the water a much faster and more efficient process.
Speed Keeper Hook Keeper: The patented Speed Keeper is a fold-out hook keeper located at the base of the reel. It provides a convenient and secure place to attach your lure, keeping sharp hooks away from the reel’s finish and your hands. When not in use, it tucks away cleanly, preventing line snags.
95mm Carbon Fiber Handle: The bowed carbon fiber handle is both incredibly lightweight and immensely strong. It is fitted with contoured Winn Dri-Tac handle knobs, which provide a comfortable and secure grip, even in wet conditions. The longer 95mm length provides extra leverage for increased cranking power.

Conclusion: The Professional’s Choice

The Team Lew’s Pro-Ti Baitcast Reel is a masterclass in modern reel design. It seamlessly blends a lightweight, ergonomic platform with a powerhouse drivetrain and a formidable drag system. Every component, from the P1 Super Pinion to the titanium deposition finish, is chosen and engineered for a specific, performance-oriented purpose. For the tournament angler or the dedicated enthusiast who refuses to compromise, the Pro-Ti is not just an option; it is the definitive choice for lightweight, powerful, and precision-engineered performance.

Posted on by

KastKing iReel One IFC: The Future of Smart Fishing

The age of smart technology has officially cast its line into the world of fishing with the KastKing iReel One IFC Smart Fishing Reel. This innovative baitcasting reel is more than just a tool for reeling in your next big catch; it’s a data-driven companion designed to analyze and improve your angling performance. Packed with intelligent features, a sophisticated braking system, and a sleek design, the iReel One IFC aims to revolutionize the way anglers approach their sport.

This detailed article explores the intricacies of the KastKing iReel One IFC, from its core functionalities and technological underpinnings to user feedback and its place in the evolving landscape of fishing gear.

The Dawn of the Smart Reel: What is the iReel One IFC?

At its heart, the KastKing iReel One IFC is a low-profile baitcasting reel. However, it distinguishes itself from the competition with its integrated smart technology. The “IFC” in its name stands for Intelligent Frequency Control, a proprietary braking system that electronically adjusts to prevent backlashes and optimize casting distance.

But the intelligence doesn’t stop there. The iReel One IFC connects via Bluetooth to the KastKing app on your smartphone, transforming the reel into a data acquisition device. It meticulously tracks a variety of metrics, including:

Cast Count: Keep a precise record of your total casts throughout a fishing trip.
Casting Distance: Analyze the distance of each cast, with data on your average and longest casts.
Retrieve Speed: Monitor the speed at which you retrieve your lure, a critical factor in presentation.
Cadence: Understand the rhythm and pattern of your retrieve.

This data is then compiled and can be reviewed to identify patterns, refine techniques, and ultimately, increase your success on the water.

Under the Hood: The Technology Driving the iReel One IFC

The KastKing iReel One IFC is built upon a foundation of advanced engineering and materials. The frame is constructed from a lightweight and rigid aluminum alloy, ensuring durability without adding unnecessary weight. The side covers are made from carbon fiber, further contributing to its lightweight design.

The reel boasts a 7.2:1 gear ratio, a versatile speed that is well-suited for a wide range of popular fishing techniques, from working topwater lures to jigging. A total of 11+1 double-sealed stainless steel ball bearings contribute to a smooth and effortless retrieve. The carbon fiber drag system provides up to 18 pounds of fish-stopping power.

The two standout technological features of the iReel One IFC are its Intelligent Frequency Control braking system and the innovative Axis Eye line guide.

Intelligent Frequency Control (IFC)

The IFC system is the reel’s main selling point. Unlike traditional magnetic or centrifugal braking systems that require manual adjustment, the IFC is a digital, autonomous system. It utilizes a microprocessor to analyze spool speed and other variables in real-time. By dynamically adjusting the braking force throughout the cast, the IFC system aims to virtually eliminate backlashes, a common frustration for baitcaster users. This allows for longer, more accurate casts, even with lighter lures or in windy conditions.

Axis Eye Line Guide

The Axis Eye line guide is another unique feature. Unlike a traditional, static line guide, the Axis Eye pivots as you cast, creating a wider opening for the line to flow through. This design minimizes friction and line slap, which in turn helps to increase casting distance and smoothness. When you engage the handle to retrieve, the Axis Eye returns to its standard position to ensure even line lay on the spool.

The Brains of the Operation: The KastKing App

The KastKing app is the central hub for all the data collected by the iReel One IFC. The app, available for both iOS and Android devices, offers a user-friendly interface to track and analyze your fishing sessions.

Upon connecting the reel to the app, you can create logs for each fishing trip, noting the date, time, and location. The app then populates these logs with the data transmitted from the reel. You can view detailed statistics for each cast, compare performance over time, and even map out your casts on a satellite image of the body of water you’re fishing.

The app also allows you to customize the reel’s settings and receive firmware updates from KastKing, ensuring your iReel One IFC is always operating with the latest software.

Real-World Performance: What Anglers Are Saying

User reviews for the KastKing iReel One IFC have been largely positive, with many anglers praising its innovative features and smooth performance. The anti-backlash capabilities of the IFC system are frequently highlighted as a game-changer, particularly for those new to baitcasting reels.

The data tracking features have also been well-received by anglers who enjoy a more analytical approach to their fishing. The ability to see tangible metrics on casting distance and retrieve speed has helped many users identify areas for improvement in their technique.

However, some users have raised concerns about the reel’s price point, which is significantly higher than many standard baitcasting reels. The utility of the smart features has also been a point of discussion, with some anglers questioning whether the data is truly essential for a successful day of fishing. There have also been isolated reports of connectivity issues with the KastKing app.

Is the KastKing iReel One IFC the Future of Fishing?

The KastKing iReel One IFC undoubtedly represents a significant step forward in fishing reel technology. By integrating smart features and a sophisticated electronic braking system, KastKing has created a product that offers tangible benefits to anglers of all skill levels.

For beginners, the near-elimination of backlashes makes the learning curve for baitcasting significantly less steep. For experienced anglers, the wealth of data provides a new dimension to their fishing, allowing for a more scientific and analytical approach to improving their skills.

While the higher price tag may be a deterrent for some, the innovative technology and performance benefits of the KastKing iReel One IFC make it a compelling option for those who are passionate about fishing and eager to embrace the future of the sport. As smart technology continues to permeate every aspect of our lives, it is likely that we will see more products like the iReel One IFC that blend traditional craftsmanship with cutting-edge innovation. The era of the smart fishing reel has arrived, and KastKing is at the forefront of this exciting new wave.

Posted on by

Beyond the Box: A Comprehensive Guide to Super Tuning Your Baitcasting Reel

A baitcasting reel is more than just a tool; it’s a precision instrument. While modern reels are remarkably capable straight out of the box, a process known as “super tuning” can unlock a new level of performance, tailoring the reel to your specific needs and preferences. This detailed guide will walk you through the various aspects of super tuning, from intricate bearing upgrades to ergonomic handle swaps, transforming your stock reel into a high-performance casting machine.

The Foundation: A Meticulous Cleaning and Lubrication

Before embarking on any performance upgrades, a thorough cleaning and proper lubrication are paramount. A clean reel is a smooth reel, and this process alone can significantly enhance performance.

Disassembly and Cleaning:

Begin by carefully disassembling your reel. It is advisable to have a schematic for your specific model on hand. As you remove parts, lay them out in the order they were removed on a clean, lint-free cloth. This will simplify the reassembly process.

Use a quality degreaser and small brushes to meticulously clean all old grease, oil, and accumulated grime from the gears, frame, and all other internal components. Pay close attention to the main gear, pinion gear, and the worm gear of the levelwind system. A toothbrush or a specialized reel cleaning brush can be very effective for this task. For stubborn deposits, a soak in the degreaser may be necessary. Ensure all parts are thoroughly dried before proceeding.

Strategic Lubrication:

Over-lubrication is a common mistake that can hinder performance by attracting dirt and creating unnecessary resistance. The key is to use the right lubricant in the right place, and to use it sparingly.

Grease: A quality reel grease should be applied to the teeth of the main gear and the pinion gear. A light coat is all that is needed; the movement of the gears will distribute it evenly.
Oil: A light, high-quality reel oil should be used on bearings, the spool shaft, and the worm gear of the levelwind system. For bearings, a single drop is usually sufficient.

The Heart of the Cast: Upgrading Your Bearings

The spool bearings are the most critical component for casting distance and the ability to effectively cast lighter lures. Upgrading from standard stainless steel bearings to higher-quality aftermarket options can yield dramatic results.

Types of Bearings:

Stainless Steel Bearings: These are the standard in most factory reels. While functional, their performance can be inconsistent.
Ceramic Hybrid Bearings: These are a popular upgrade, featuring ceramic balls with stainless steel races. They are lighter, harder, and smoother than stainless steel balls, resulting in less friction and longer spin times. This translates to longer, more effortless casts.
Full Ceramic Bearings: For the ultimate in performance, full ceramic bearings with ceramic balls and races offer the least resistance. They are also impervious to corrosion, making them an excellent choice for saltwater anglers.

The Upgrade Process:

Replacing spool bearings is a relatively straightforward process. The spool can typically be removed after taking off the side plate. The bearings are often held in place by a small retaining clip or are press-fit into the side plate and spool. A specialized bearing removal tool can be very helpful for this task.

When installing new bearings, it’s crucial to decide on lubrication. Many high-performance ceramic bearings are designed to be run dry, offering the most “free spin.” However, a single drop of light oil can quiet them down and provide a small amount of protection without significantly impacting performance.

Taming the Beast: Optimizing Your Drag System

A smooth and reliable drag system is essential for fighting fish effectively. Stock drag washers, often made of felt or other materials, can become compressed and jerky over time. Upgrading to carbon fiber drag washers is a significant improvement.

The Carbon Fiber Advantage:

Carbon fiber drag washers, often referred to by brand names like Carbontex, offer several advantages:

Smoothness: They provide a much smoother and more consistent drag pressure, reducing the risk of line breakage from a jerky drag.
Durability: Carbon fiber is highly durable and less prone to compression than other materials.
Increased Drag Pressure: In many cases, upgrading to carbon fiber washers can increase the maximum drag pressure of your reel.

Installation and Lubrication:

Upgrading the drag system involves disassembling the handle and star drag mechanism to access the gear stack where the drag washers are located. Carefully replace the old washers with the new carbon fiber set, ensuring they are installed in the correct order.

A very light coating of a specialized drag grease, such as Cal’s Drag Grease or Deuthlon Drag Grease, is highly recommended. This grease protects the washers and ensures a smooth, consistent startup. Apply a thin film to each washer before reassembly.

The Angler’s Interface: Customizing Your Handle

The handle is your direct connection to the reel, and customizing it can improve both comfort and performance.

Handle Length and Material:

Longer Handles: A longer handle provides more leverage, making it easier to crank on powerful fish and retrieve large lures. This is a popular upgrade for anglers using deep-diving crankbaits or swimbaits.
Carbon Fiber Handles: These handles are lighter than their aluminum counterparts, reducing the overall weight of the reel and increasing sensitivity.

Knob Upgrades:

The handle knobs themselves can also be upgraded for improved grip and comfort. Options include:

EVA Foam Knobs: These are lightweight and comfortable, providing a good grip even when wet.
Cork Knobs: Offering a classic look and feel, cork is also very lightweight and provides excellent grip.
Power Knobs: Larger, round or T-shaped knobs provide a more substantial grip for increased cranking power.

Many aftermarket handles come as complete kits with new knobs, bearings for the knobs, and the necessary hardware for installation.

Ensuring Flawless Line Management: Tuning the Levelwind System

The levelwind system is responsible for distributing line evenly across the spool during the retrieve. A properly functioning levelwind is crucial for preventing line dig-in and ensuring smooth casting.

Cleaning and Lubrication:

The worm gear is the heart of the levelwind system and is a magnet for dirt and debris. Regular cleaning with a degreaser and a small brush is essential. After cleaning, apply a light coat of quality reel oil to the worm gear. A single drop on the pawl (the small pin that travels within the worm gear’s groove) will also ensure smooth operation.

Polishing for Performance:

For the truly dedicated tuner, polishing the worm gear and the pawl can reduce friction and create an even smoother line lay. This can be done with a very fine-grit polishing compound and a Dremel tool with a felt polishing bit. The goal is to create a mirror-like finish, but care must be taken not to remove too much material.

By systematically addressing each of these areas, you can transform a standard baitcasting reel into a super-tuned machine that is a joy to fish with. The increased casting distance, smoother retrieve, and improved ergonomics will not only make you a more effective angler but will also deepen your appreciation for the intricate engineering of these incredible tools.

Posted on by

The Baitcaster Journey: From First Cast to Pro Techniques!

Ever watched a pro angler cast with effortless precision, their lure landing perfectly in a tiny pocket of cover? Chances are, they were wielding a baitcasting reel – a tool of power, precision, and ultimate control. But for many, especially those used to spinning gear, the baitcaster can seem intimidating, shrouded in myths of dreaded “bird’s nests” and complicated settings.

Fear not, aspiring angler! This comprehensive guide is your roadmap to mastering the baitcasting reel, whether you’re taking your very first cast, looking to refine your technique, or seeking advanced insights to elevate your game. Get ready to unlock the true potential of this incredible fishing machine and discover a whole new world of angling possibilities!

For Beginners: The Lure of the Baitcaster – Your First Cast to Confidence!

Welcome to the exciting world of baitcasting! Many anglers are drawn to these reels for their incredible advantages, and with a little patience, you’ll soon understand why.

Why Baitcasters Rule (and Why You’ll Love Them): Baitcasters offer unparalleled precision for hitting tight spots under docks or into heavy cover. They provide immense power for hauling in bigger fish, especially when battling a strong fish or a stubborn bass. Crucially, they offer an incredible feel or connection to your lure and any subtle bites, making you a more responsive angler.

Anatomy of Your New Toy: Understanding the Parts: Before your first cast, let’s get acquainted with your reel:

Spool: This is where your fishing line is stored. Unlike a spinning reel, it spins freely during a cast.
Drag: This adjustable mechanism allows line to peel off the spool under pressure, preventing your line from breaking when a big fish pulls hard.
Brakes (or Cast Control System): This is your anti-backlash hero! It applies resistance to the spool during the cast to prevent it from spinning faster than your line is leaving. You’ll find magnetic brakes (external dials) or centrifugal brakes (internal pins).
Handle: For retrieving your lure and fighting fish.
Thumb Bar (or Thumb Button): Pressing this disengages the spool for casting.

Getting Started Smoothly: Your First Steps to Success:

Spooling Line: While it might seem daunting, properly spooling your line is crucial. Many tackle shops will do it for you, or watch a quick online tutorial. For beginners, a slightly heavier monofilament or fluorocarbon line (12-17 lb test) is often more forgiving than braid.
Tension Knob Taming (The “Lure Drop” Test): This small knob (often on the side opposite the handle) controls initial spool tension. Attach a medium-weight lure (like a 1/2 oz jig). Press the thumb bar. Now, slowly tighten the tension knob until, when you gently shake your rod, the lure slowly drops to the ground, and the spool stops spinning immediately when the lure hits. This is your starting point.
Brake Basics (Start with Training Wheels!): If your reel has external magnetic brakes, start at a higher setting (e.g., 7 or 8 out of 10). If it has internal centrifugal brakes, engage most of the pins. These higher settings provide more control and prevent backlashes, building your confidence.

Busting the “Bird’s Nest” Myth (and How to Avoid It!): The dreaded “bird’s nest” or backlash happens when the spool spins faster than your line is going out, creating a tangled mess. Reassure yourself: every pro angler has gotten backlashes!

Key Tip: Your Thumb is Your Best Friend! After pressing the thumb bar, as your lure sails through the air, keep a light, consistent pressure with your thumb on the spool. As the lure approaches your target or hits the water, gently apply more thumb pressure to stop the spool completely. This “feathering” action is the secret!
Pro Tip for Practice: Start by practicing in an open area like a backyard or local park. Attach a casting plug (a weighted practice lure without hooks) or a heavier jig (e.g., 1/2 oz or 3/4 oz) as heavier lures are easier to cast accurately and prevent backlashes. Cast with a smooth, controlled motion, not brute force.

For Intermediate Anglers: Mastering the Mechanics – Beyond the Basics!

You’ve got the basics down, now let’s refine your technique and dive deeper into the mechanics that will truly elevate your casting game.

Brake Breakdown – Magnetic vs. Centrifugal Explained: Understanding your reel’s braking system helps you adapt to different conditions:

Magnetic Brakes: These are external dials, easy to adjust on the fly. They use magnets to slow the spool. Ideal for changing wind conditions, lure weights, or when you need quick adjustments.
Centrifugal Brakes: These are internal pins (often located under the side plate). As the spool spins, the pins are pushed outwards, creating friction. They offer very consistent braking once set. You typically set these before fishing and adjust them less frequently.

Gear Ratios Demystified: The Power of RPMs! The gear ratio (e.g., 6.4:1) tells you how many times the spool rotates with one full turn of the handle. Choosing the right ratio is crucial for specific lure presentations:

Low Ratios (e.g., 5.x:1): These reels prioritize power and a slower retrieve. Perfect for deep-diving crankbaits, large swimbaits, or big rigs where you need to grind a lure through the water with minimal effort.
Medium Ratios (e.g., 6.x:1): Your versatile workhorse! Great for spinnerbaits, chatterbaits, topwater lures, and general-purpose fishing. Most anglers will find a reel in this range to be an excellent all-around choice.
High Ratios (e.g., 7.x:1 and up): These reels are all about speed and quick line pick-up. Ideal for pitching and flipping into heavy cover, quickly reeling in slack after a bite, or when working fast-moving topwater lures.

The Perfect Casting Stroke: Smoothness Over Strength: Forget the idea of “heaving” your lure. Baitcasting is about fluid motion:

Wrist Snap is Key: Most of the casting power comes from a crisp, controlled wrist snap, not your entire arm.
Load the Rod: As you bring the rod back (typically to the 10 or 11 o’clock position), you’ll feel the rod tip “load” or bend with the weight of the lure.
Smooth Forward Motion & Follow-Through: Accelerate smoothly forward, releasing the thumb bar at the 1 or 2 o’clock position. Allow your rod to follow through naturally towards your target.
Refining Your Touch: Remember to use your thumb as a “feathering” device during the cast, not just a full stop. It’s about slowing the spool just enough to prevent overrun as the lure sails.

Pitching and Flipping – Surgical Strikes in Tight Cover: These are advanced techniques that allow for incredibly precise lure placement:

Pitching: A quiet, underhand cast where you swing the lure like a pendulum, propelling it forward with a subtle rod tip movement. The lure stays low to the water, minimizing splash and maximizing stealth. Perfect for targeting specific spots under overhanging trees.
Flipping: A very short-range technique. You pull line directly from the reel, swing the lure underhand, and use the rod to guide it gently into dense cover (like lily pads or thick brush). It’s incredibly accurate and allows for silent entries into fishy hideouts.

For Experienced Anglers: Advanced Tactics & Troubleshooting – Fine-Tuning Your Edge!

You’ve put in the hours, you’ve battled the backlashes, and now you’re ready to squeeze every ounce of performance out of your baitcaster.

Beyond Basic Casting – Specialized Techniques:

Skipping: Making your lure skip across the water’s surface, like a stone, to reach fish hiding deep under docks, boat covers, or overhanging trees. It requires a low, sharp cast angle and precise thumb control.
Roll Casting: Ideal for tight quarters where an overhead cast is impossible. It’s a smooth, circular rod motion that “rolls” the line off the rod tip, propelling the lure forward.
Long-Distance Bombing: Achieving maximum casting distance with minimal effort. This involves perfectly loading your rod, finding the optimal release point, and fine-tuning your brakes to allow maximum spool speed without overrun. Line choice (like thin braid) plays a huge role here.

Lure-Specific Retrieves & Your Reel: Optimize for Success: Your baitcaster’s gear ratio and feel can enhance specific lure presentations:

Crankbaits: Pair deep-diving crankbaits with lower gear ratio reels (5.x:1 to 6.x:1). This allows you to maintain consistent pressure and feel the lure’s subtle wobble and deflection off structure, without tiring yourself out.
Jigs & Worms: High gear ratio reels (7.x:1 to 8.x:1) are perfect for these bottom-contact baits. The fast retrieve allows you to quickly pick up slack line after detecting a bite, crucial for powerful hooksets.
Topwater Baits: While medium ratios work, higher ratios can help with “walking the dog” retrieves on stickbaits, allowing you to quickly take up slack between twitches and keep the lure dancing.

On-the-Water Troubleshooting: Quick Fixes for Common Issues:

Sudden Backlashes: Check for changing wind conditions (especially a headwind!), a loose spool tension knob, or too little thumb pressure. Sometimes, a slight adjustment to your brakes is all it takes. Remember to consider wind direction and humidity when making adjustments – these subtle changes can make a big difference in casting performance.
Lure Not Casting Far: Examine your line for wear or memory, clean and lubricate your spool bearings, and ensure no debris is impacting the spool. Also, reassess your casting motion for efficiency.
Sticky Drag: This usually means dirt, sand, or old grease has gotten into your drag washers. It requires disassembling the drag stack, cleaning the washers, and applying a thin layer of drag grease.

Reel Longevity & Peak Performance: Beyond a Quick Rinse! A little care goes a long way in ensuring your baitcaster performs flawlessly for years:

Post-Trip Rinse: A quick spray with fresh water (never direct blast into bearings!) after each trip, especially if in saltwater, helps remove corrosive elements.
Regular Cleaning: Periodically, gently remove the side plate, clean out any grit or old grease with a Q-tip, and use a reel cleaning spray designed for fishing tackle.
Lubrication is Key: Apply a tiny drop of high-quality reel oil to the spool bearings and worm gear. Use a very light coating of reel grease on the main gears. Less is more – over-lubricating can attract dirt.
Bearing Care: The heart of a smooth reel! If your bearings feel rough, they might need a deep clean with a dedicated bearing cleaner or even replacement. Smooth bearings mean longer, smoother casts. For the ultimate edge, some experienced anglers explore aftermarket bearings designed for ultimate smoothness.

Conclusion: Your Baitcaster Adventure Begins!

You now have the knowledge and tools to confidently pick up a baitcasting reel and truly elevate your angling experience. Mastering the baitcaster is a journey, not a destination, and every cast offers an opportunity to learn and refine your skills.

From those first tentative casts to surgically accurate presentations, the world of baitcasting is now open to you. So, rig up your favorite lure, find your sweet spot, and prepare to feel the exhilarating precision and control that only a baitcasting reel can deliver.

Happy casting, and tight lines!

Posted on by

From Stock to Custom: The Ultimate Guide to Changing Your Baitcast Reel Handle

For many anglers, a baitcasting reel is more than just a tool; it’s a finely tuned extension of their own hands. Every component plays a role in the feel and performance, and none more so than the handle. Whether you’re seeking better ergonomics, a reduction in weight, a splash of custom color, or replacing a damaged original, changing the handle on your baitcast reel is one of the most impactful and straightforward upgrades you can make.

This detailed guide will walk you through every step of the process, from understanding the components and choosing a new handle to the final tightening of the screws. By the end, you’ll have the confidence to pop open that small parts bag and give your favorite reel a significant, personalized upgrade.

Why Change Your Baitcast Reel Handle?

Before you start turning screws, it’s helpful to understand the benefits of this popular modification.

Enhanced Ergonomics and Comfort: The most common reason for an upgrade. Longer handles provide increased leverage and torque, making it easier to grind in big fish with large baits like deep-diving crankbaits and swimbaits. Custom knobs made from materials like cork, oversized EVA foam, or contoured aluminum can provide a much better grip and reduce hand fatigue over a long day of casting.
Weight Reduction: Upgrading from a stock aluminum handle to a high-quality carbon fiber model can noticeably reduce the overall weight of your reel. This small change can improve the balance of your entire rod and reel combo, leading to increased sensitivity and less strain on your wrist.
Performance in Adverse Conditions: Wet and cold weather can make standard plastic or metal knobs slippery. Specialized knobs, particularly those made from tacky materials like cork or specific types of EVA, can provide a superior grip when the elements turn against you.
Aesthetics and Customization: Let’s be honest—it looks cool. A custom handle is one of the easiest ways to personalize your gear. With a vast array of anodized colors, carbon fiber weaves, and unique knob shapes available, you can make your reel stand out from the crowd and match it to your rod’s color scheme.
Replacement of Damaged Parts: Handles and knobs take a lot of abuse. A drop on the rocks or years of hard use can bend a handle or break a knob. Being able to swap it out yourself is a crucial maintenance skill.

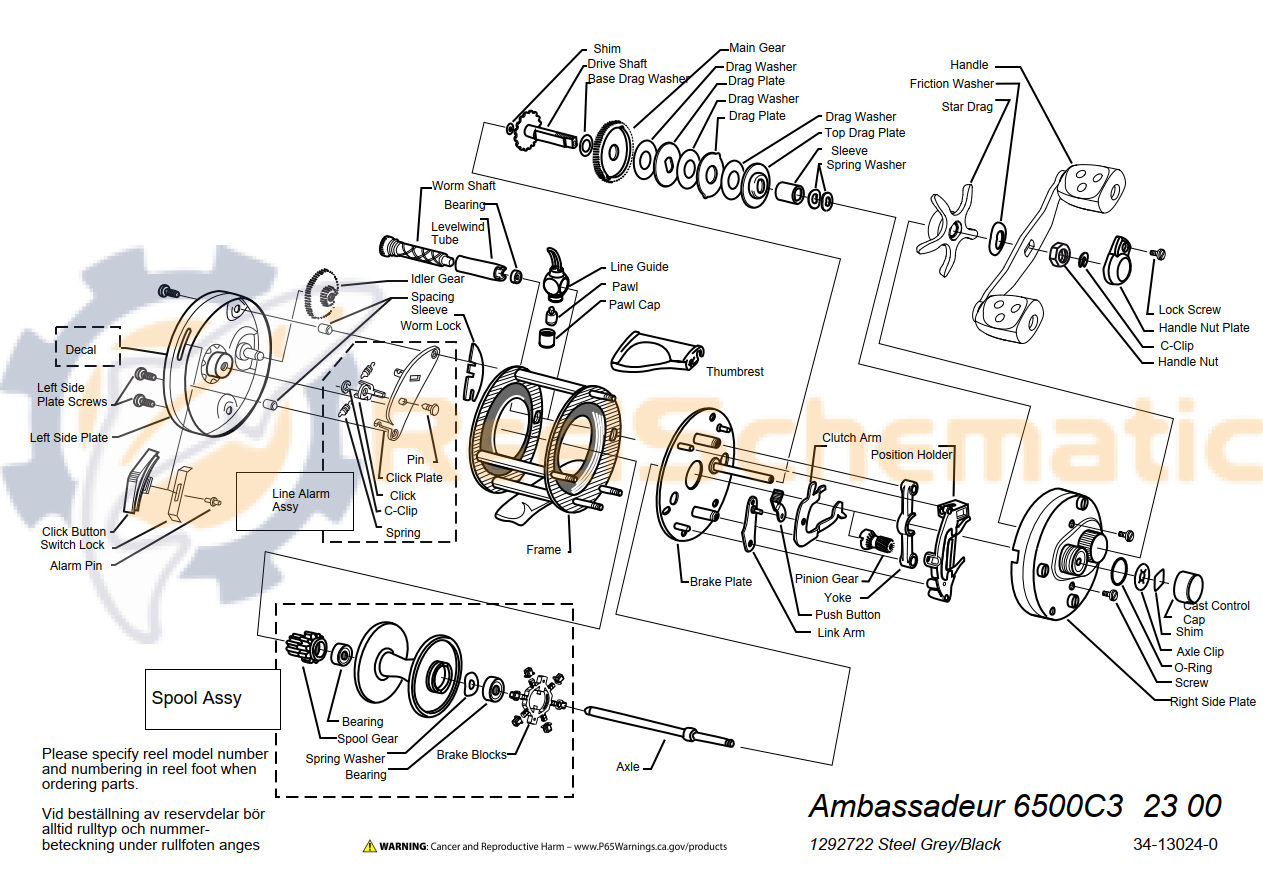

Anatomy of a Baitcast Handle Assembly

The handle on a modern baitcasting reel is a simple, robust system. Understanding its parts is the key to a smooth installation.

The Handle Assembly: This is the main arm, complete with the knobs.
The Handle Nut: This is the primary nut that secures the handle to the reel’s drive shaft. It is typically right-hand or left-hand threaded, depending on the retrieve direction of your reel.
The Retaining Plate (or “Keeper”): This is a small metal or plastic plate that fits over the handle nut. Its only job is to prevent the handle nut from backing off and loosening during use.
The Retaining Plate Screw: A tiny screw that holds the retaining plate in place, fastening it to the body of the handle itself.
The Tension Cap (or “Spool Tension Knob”): This is the cap located directly under the handle and star drag. While not technically part of the handle assembly, it often needs to be removed or loosened to provide clearance for tools.

Tools and Materials You’ll Need

You don’t need a professional workshop for this job. Most handle swaps can be done with a few simple tools.

Small Phillips Head Screwdriver: For the retaining plate screw.
Small Wrench or Nut Driver: Typically 8mm, 10mm, or 11mm. Most aftermarket handles come with a small, stamped metal tool that serves this purpose.
Your New Handle: Ensure it is compatible with your reel brand (e.g., Shimano, Daiwa, Abu Garcia) and retrieve direction. Most aftermarket handles come with a kit including shims and different sized nuts to fit various models.
A Small Tray: A magnetic parts tray or even just a small bowl is essential for keeping the tiny screws and nuts from getting lost.
A Soft Cloth: To protect the reel’s finish while you work.
Blue Loctite (Optional): For adding extra security to the retaining plate screw.

Step-by-Step Installation Guide

Lay your soft cloth on a clean, well-lit workspace. Let’s begin the transformation.

Step 1: Disassembly of the Stock Handle

Remove the Retaining Plate Screw: Using your Phillips head screwdriver, carefully unscrew the small screw that holds the retaining plate onto the handle. Place this tiny screw immediately into your parts tray. It is the easiest part to lose.
Lift Off the Retaining Plate: With the screw removed, the retaining plate should lift right off. Place it in the tray.
Unscrew the Main Handle Nut: Now, use your wrench or the tool provided with your new handle to unscrew the main handle nut. Important Note: For a right-handed retrieve reel, this nut will typically be a standard right-hand thread (turn counter-clockwise to loosen). For a left-handed retrieve reel, it will often be reverse-threaded (turn clockwise to loosen). If it doesn’t budge with normal pressure, try the opposite direction before applying excessive force.
Slide Off the Handle: With the nut removed, the entire stock handle assembly should slide straight off the drive shaft. You may see a small, thin washer or shim underneath; leave it in place if possible, or place it carefully in your parts tray.
Remove the Star Drag (If Necessary): On some reels, the star drag (the star-shaped wheel used to adjust the drag pressure) may slide off along with the handle. Note its orientation—there is often a series of audible “clicker” washers underneath that need to be put back in the same order. Take a quick photo with your phone if you’re unsure.

Step 2: Preparing for the New Handle

Clean the Area: With the handle off, it’s a great opportunity to take a soft brush or cotton swab and clean any accumulated dirt or old grease from around the drive shaft and the side plate of the reel.
Re-install the Star Drag: If you removed the star drag, slide it back onto the drive shaft, making sure any clicker washers are in their correct positions. You should hear it click as you turn it.
Check for Shims: Your new handle kit may come with small shims. These are used to eliminate any back-and-forth play if the new handle’s mounting hole is slightly thinner than the stock one. For now, plan to install the handle without any shims first to test the fit.

Step 3: Installing the New Handle

Slide on the New Handle: Carefully slide your new carbon fiber or aluminum handle onto the drive shaft. It should seat flush against the star drag. Give it a gentle wiggle; it should feel solid with minimal play. If there is noticeable back-and-forth movement, slide it back off and add one of the provided shims before reinstalling it.
Install the New Handle Nut: Select the correct nut from your new handle’s hardware kit. Most kits provide two or three nuts of different sizes and threading to fit various reel models. Start threading the nut by hand to ensure you have the correct one and are not cross-threading it.
Tighten the Handle Nut: Using your wrench, tighten the nut until it is snug. It does not need to be cranked down with excessive force. Just make it firm enough that there is no wobble in the handle.
Position the New Retaining Plate: Place the new retaining plate (keeper) over the nut. You may need to slightly tighten or loosen the main nut a tiny fraction of a turn to get the hole in the plate to line up perfectly with the screw hole on the new handle.
Secure the Retaining Plate Screw: Insert the small screw and tighten it down with your Phillips screwdriver. Again, just make it snug. If you are concerned about it backing out, you can add a tiny drop of blue Loctite to the threads before installation.

Step 4: Final Checks and Adjustments

Turn the Handle: Rotate the new handle. It should feel smooth and solid, with no wobble or binding.
Check the Star Drag: Make sure the star drag still clicks and operates as it should.
Test the Tension Cap: Ensure the handle does not interfere with your ability to access and adjust the spool tension cap.
Admire Your Work: Step back and appreciate your newly upgraded, custom fishing machine.

By following these simple steps, you can confidently customize one of the most important contact points on your reel. This simple, 15-minute job not only adds a personal touch to your gear but can also provide tangible performance benefits on the water, giving you the comfort and leverage needed to fish harder and land more fish.

Posted on by

The Enduring Legacy of Excellence: The Shimano Curado Series Reels

For decades, the name “Curado” has been synonymous with reliability, performance, and unwavering durability in the baitcasting reel world. From weekend warriors to seasoned tournament pros, anglers worldwide have trusted Shimano Curado reels to deliver under the toughest conditions. At ReelSchematic.com, we understand the importance of choosing the right tools for the job, and few reels offer the consistent quality and innovative engineering found throughout the Curado series.

This comprehensive article will delve into the rich history, core technologies, and various models within the Shimano Curado lineup, providing you with a thorough understanding of why these reels have earned their legendary status and how they can elevate your angling experience.

A Heritage of Innovation: The Curado Story

The Shimano Curado made its debut in the late 1980s, quickly establishing itself as a mid-range workhorse that punched well above its weight class. Early models, like the green Curado Bantam series, became instant classics, lauded for their smooth retrieves, robust gearing, and impressive casting distance. Shimano’s commitment to continuous improvement meant that with each subsequent generation, the Curado evolved, incorporating cutting-edge technologies trickling down from their flagship models.

This iterative design philosophy has allowed the Curado to remain relevant and competitive in an ever-advancing market. It’s a testament to Shimano’s engineering prowess that a reel series can maintain its core identity while consistently adapting to the demands of modern fishing techniques.

Core Technologies that Define the Curado

While specific features may vary between models and generations, several foundational Shimano technologies are consistently found across the Curado series, contributing to their renowned performance:

HAGANE Body: This incredibly rigid metal reel body eliminates body flex and distortion, even under extreme loads. The result is improved cranking power and a more efficient transfer of energy from the handle to the gears, leading to a smoother and more powerful retrieve.
X-Ship: A key gear support system, X-Ship places a bearing on both ends of the pinion gear. This precise alignment and added support eliminate twist and torque in the pinion gear, leading to increased gear durability and a smoother, more powerful retrieve under load. You’ll feel the difference when fighting a stubborn fish or reeling in a heavy lure.
MicroModule Gearing (selected models): This advanced gear design features smaller, more numerous teeth, leading to increased contact points between the main gear and pinion gear. The benefit is an incredibly smooth and quiet retrieve, reduced vibration, and enhanced durability.
SVS Infinity Braking System: Shimano’s centrifugal braking system offers a wide range of cast control adjustments. With externally adjustable brake weights, anglers can fine-tune their casting performance for various lure weights, wind conditions, and casting styles. This system is known for its reliability and ease of use, helping to prevent backlashes.
CI4+ Body Material (selected models): For reels where weight reduction is critical without sacrificing strength, Shimano utilizes CI4+. This carbon-fiber reinforced material is significantly lighter and stronger than traditional graphite, contributing to a lighter overall reel that reduces angler fatigue during long days on the water.
Cross Carbon Drag: Shimano’s Cross Carbon Drag washers provide a wider range of drag settings, consistent drag pressure throughout the fight, and superior heat dissipation. This means a smoother, more reliable drag that instills confidence when battling large, powerful fish.
SilentTune (selected models): This technology further improves casting performance by reducing vibration in the spool and bearings, resulting in a quieter, smoother cast and increased casting distance.
Super Free Spool: This design ensures that the pinion gear is supported by a bearing, eliminating friction on the spool shaft during a cast. The result is reduced resistance and increased casting distance, especially with lighter lures.

Exploring the Curado Family: A Model Breakdown

The Curado series isn’t a single reel; it’s a family of baitcasters, each designed with specific applications and preferences in mind. While models may be discontinued and new ones introduced, understanding the general philosophy behind each iteration can help you choose the right Curado for your needs.

The Workhorse Standard: Shimano Curado K (and its predecessors)

The “standard” Curado models, often denoted by a single letter (e.g., K, M, I, G, E, D, B), represent the core of the series. The Curado K is the current flagship of this line, building upon a long lineage of popular models.

Key Features of the Curado K: The Curado K typically incorporates HAGANE Body, X-Ship, SVS Infinity Braking, and Super Free Spool. It’s known for its robust construction, smooth operation, and exceptional versatility.
Why it’s Popular: It’s the quintessential all-around baitcaster. The Curado K excels at throwing a wide variety of lures, from jigs and Texas rigs to crankbaits and spinnerbaits. It’s a reliable choice for freshwater species like bass, pike, and even smaller saltwater species. Its balanced performance and durable build make it a go-to for countless anglers.
Versatility: Available in various gear ratios (e.g., 6.2:1 for power, 7.4:1 for speed, 8.5:1 for blistering retrieves), allowing anglers to select the ideal speed for their chosen technique.

The Lighter Side: Shimano Curado MGL

The Curado MGL (MagnumLite Spool) takes the core Curado performance and injects it with a significant boost in casting ability, particularly with lighter lures.

Key Feature: MGL Spool: The defining characteristic is the MGL spool, which is significantly lighter and has less inertia. This allows the spool to start rotating faster with less effort, resulting in increased casting distance and control, especially with finesse presentations like weightless worms, jerkbaits, or small topwaters.
Ideal Applications: Perfect for situations where casting distance and precision with lighter baits are paramount. It’s a favorite for finesse bass fishing, clear water scenarios, and anytime you need to maximize your cast.
Balance: While optimized for lighter lures, the Curado MGL still retains the Curado’s signature durability and power, making it a surprisingly versatile option.

The Powerhouse: Shimano Curado 300/301

When big baits, big fish, and heavy lines are the order of the day, the Curado 300/301 series steps up. These are significantly larger and more powerful than the standard Curado models.

Key Differences: Larger line capacity, heavier-duty gearing, and a more robust frame designed to handle extreme pressure. They often feature larger handles for increased cranking power.
Target Species/Techniques: Ideal for musky, pike, large bass (with oversized swimbaits or glide baits), inshore saltwater species like snook and redfish, and even light offshore applications. They excel at throwing heavy lures, deep diving crankbaits, and punching through dense cover.
Power and Durability: Built to withstand immense strain, the Curado 300 models are true workhorses for trophy hunting.

The Saltwater Ready: Shimano Curado DC (and other saltwater compatible Curados)

While many Curado models are suitable for light saltwater use with proper maintenance, some, like the Curado DC, offer enhanced features that make them particularly well-suited for battling corrosive environments.

DC Braking (Digital Control): The Curado DC features Shimano’s revolutionary I-DC4 digital braking system. This microcomputer-controlled braking system monitors spool speed 1,000 times per second and applies the optimal amount of braking pressure, virtually eliminating backlashes. This is incredibly beneficial in saltwater environments where wind and various lure types can make casting challenging.
Corrosion Resistance: While not a dedicated “saltwater” reel like a Tranx or Calcutta, the Curado DC often incorporates enhanced corrosion resistance in its bearings and components compared to its freshwater counterparts.
Versatility in Saltwater: Ideal for inshore species like redfish, speckled trout, snook, and small tarpon, where casting accuracy and backlash prevention are highly valued.

Matching Your Curado to Your Fishing Style

Choosing the right Curado involves considering a few key factors:

Target Species & Lure Weight:
- Standard Curado K: Excellent for general-purpose freshwater fishing (bass, walleye, northern pike) with a wide range of lure weights (1/4 oz to 1 oz+).
- Curado MGL: Best for lighter lures (1/8 oz to 5/8 oz) and finesse techniques where casting distance with lighter baits is crucial.
- Curado 300/301: For heavy lures (1 oz+) and large, powerful fish.
Gear Ratio:
- Low Gear Ratio (e.g., 6.2:1): Power. Ideal for deep crankbaits, large swimbaits, slower retrieves, and techniques requiring more torque.
- Medium Gear Ratio (e.g., 7.4:1): All-around versatility. Good for jigs, Texas rigs, spinnerbaits, and general purpose.
- High Gear Ratio (e.g., 8.5:1): Speed. Perfect for burning spinnerbaits, topwater, pitching and flipping, and quickly taking up line.
Braking System Preference:
- SVS Infinity: Traditional and highly effective centrifugal braking. Requires a bit of external adjustment but is reliable.
- DC (Digital Control): Virtually backlash-proof, especially beneficial for beginners or challenging conditions (wind, varying lure weights). Offers less external adjustment but exceptional performance.
Ergonomics and Feel: While all Curados share a similar aesthetic, subtle differences in frame size and handle length can impact how a reel feels in your hand over a long day of fishing. If possible, handle different models to find one that fits your hand comfortably.

Maintaining Your Curado: Ensuring Lifelong Performance

Even the most durable reels require proper care. A well-maintained Curado will last for many years and provide consistent performance.

Rinse After Use: Especially important after saltwater or brackish water use. Lightly rinse the exterior of the reel with fresh water to remove salt and debris. Do not submerge the reel.
Wipe Down: Use a soft cloth to dry the reel thoroughly.
Light Lubrication:
- Spool Bearings: Periodically apply a tiny drop of high-quality reel oil to your spool bearings. A little goes a long way.
- Worm Shaft: Apply a light coat of grease or specialized oil to the worm shaft (level wind mechanism) to ensure smooth line lay.
- Handle Knobs: A small drop of oil in the handle knob bearings (if applicable) will keep them spinning freely.
Drag Maintenance: Keep your drag washers dry and clean. Avoid over-tightening the drag when storing the reel, as this can compress the washers over time.
Professional Service: For internal cleaning, gear lubrication, and bearing replacement, consider having your Curado professionally serviced every few years, especially if you use it frequently or in harsh conditions. ReelSchematic.com is an excellent resource for finding schematics and parts if you prefer to do your own maintenance!
Storage: Store your reel in a cool, dry place, ideally in a reel cover to protect it from dust and scratches.

The Curado Legacy Continues

The Shimano Curado series has earned its reputation not through flashy marketing, but through consistent, reliable performance on the water. It’s a reel that inspires confidence, allowing anglers to focus on fishing rather than worrying about their gear. Whether you’re a seasoned pro targeting tournament-winning bass or a passionate enthusiast exploring new waters, there’s a Curado model perfectly suited to your needs.

By understanding the technologies, recognizing the nuances between models, and committing to proper maintenance, your Shimano Curado will undoubtedly be a trusted partner in your angling adventures for years to come, proving that true excellence endures.

Posted on by

The Enduring Evolution: A Look at the Abu Garcia Ambassadeur Revo Series

For generations of anglers, the name “Ambassadeur” has been synonymous with robust, reliable, and powerful baitcasting reels. The classic round Ambassadeur reels laid a foundation of trust and performance that continues to this day. However, as angling techniques evolved and the demand for lighter, more ergonomic, and technologically advanced reels grew, Abu Garcia embarked on a revolutionary journey – the birth of the Ambassadeur Revo series.

The Revo series represents a significant leap forward in baitcasting reel design, blending the legendary toughness of its predecessors with cutting-edge innovation. These low-profile reels quickly captured the attention of serious anglers across various disciplines, from a tournament bass fisherman to dedicated pike and musky hunters.

A Legacy Reimagined: The Core of the Revo

At its heart, the Revo series retains the core principles that made the Ambassadeur name famous: durability and power. However, it reimagines these principles in a modern, compact, and feature-rich package. Key characteristics that define the Revo experience include:

Ergonomic Low-Profile Design: Unlike the traditional round Ambassadeurs, Revo reels boast a sleek, low-profile design that fits comfortably in the hand. This reduces fatigue during long days of casting and provides enhanced control over the reel and line.
Advanced Braking Systems: One of the hallmarks of the Revo series is its sophisticated braking systems. From the early magnetic brakes to the highly tunable Infini and IVCB (Infinitely Variable Centrifugal Brake) systems found in later models, Revo reels offer exceptional casting control, minimizing backlashes and maximizing casting distance with a wide range of lure weights.
Lightweight Yet Rigid Construction: Abu Garcia has consistently employed advanced materials in the Revo series. Aluminum and, in some high-end models, magnesium frames provide a solid, flex-free foundation while keeping weight to a minimum. Carbon side plates further contribute to weight reduction without sacrificing strength.
Powerful and Smooth Drag Systems: Whether it’s the Carbon Matrix drag or the Power Stack Carbon Matrix Drag found in the Beast series, Revo reels are equipped with drag systems designed to handle powerful fish. These systems deliver smooth, consistent pressure throughout the fight, giving anglers the confidence to battle even the most formidable opponents.
Precision Gearing: The use of high-quality gears, often brass or aluminum, and advanced gear designs like the D2 Gear Design, ensures smooth and efficient power transfer with every turn of the handle. This translates to effortless retrieves and the muscle needed to winch fish out of heavy cover.

A Family of Specialists: Exploring the Revo Lineup

The Ambassadeur Revo series isn’t a one-size-fits-all solution. Abu Garcia has developed a diverse family of Revo reels, each tailored to specific angling techniques and target species:

Revo SX: Often considered the workhorse of the lineup, the Revo SX strikes an excellent balance between performance and value. It’s a versatile reel suitable for a wide range of freshwater applications.
Revo STX: Stepping up in features, the STX often incorporates lighter materials and more advanced braking and drag systems, catering to anglers seeking enhanced performance and refinement.
Revo Premier: As the name suggests, the Premier represents the pinnacle of lightweight performance in the Revo family. Often featuring magnesium frames and top-tier components, these reels are designed for anglers who demand the best in terms of weight and sensitivity.
Revo Rocket: Built for speed, the Rocket boasts incredibly high gear ratios, allowing anglers to retrieve line at an astonishing pace. This is ideal for techniques like burning buzzbaits or quickly taking up slack when fishing in deep water.
Revo Beast: As its name implies, the Beast is engineered for power. With a reinforced frame, a powerful drag system, and often a larger-capacity spool, these reels are designed to tackle big baits and big fish, making them a favorite among musky, pike, and big swimbait anglers.
Revo Toro Beast: Taking the “Beast” concept even further, the Toro Beast offers increased line capacity and even more robust construction, making it suitable for heavy-duty freshwater and even light saltwater applications.
Revo Winch: Designed for anglers who frequently use deep-diving crankbaits and other high-resistance lures, the Winch features a lower gear ratio, providing increased cranking power and reducing fatigue.

The Enduring Appeal of the Revo

The Abu Garcia Ambassadeur Revo series has solidified its place as a leader in the baitcasting reel market. Its success lies in its ability to honor the legacy of the Ambassadeur name while embracing innovation and catering to the diverse needs of modern anglers. Whether you’re a competitive angler pushing the limits or a passionate weekend warrior seeking reliable performance, the Revo series offers a compelling blend of power, precision, and durability that continues to evolve and impress.

Posted on by

Master Your Cast: A Guide to Setting Up Centrifugal Brakes on Your Casting Reel

The dreaded backlash, or “bird’s nest,” is the bane of many baitcasting anglers. Fortunately, modern casting reels come equipped with sophisticated braking systems to help manage spool speed and prevent overruns. One of the most common and effective types is the centrifugal braking system. Understanding how to properly set up and adjust these brakes is key to achieving longer, smoother, and backlash-free casts.

This guide will walk you through how centrifugal brakes work and how to tune them perfectly for your lures, conditions, and casting style.

How Do Centrifugal Brakes Work?

Imagine weights on tiny arms inside your reel. As you cast and the spool spins rapidly, centrifugal force flings these weights (often called brake blocks or pins) outwards. These outwardly moving blocks then make contact with a brake ring or raceway on the reel’s non-handle sideplate. The friction created by this contact slows the spool down, especially during the initial, fastest part of the cast when backlashes are most likely to occur.

The more brake blocks engaged (turned “on”), or the heavier they are, the more braking force is applied. As the spool naturally slows down towards the end of the cast, the centrifugal force lessens, the blocks retract, and the braking effect diminishes, allowing for maximum casting distance.

Accessing Your Centrifugal Brakes

The first step is to access the brake blocks. This usually involves removing the palm-side (non-handle side) sideplate of your casting reel. The mechanism for this varies by reel model:

Release Lever/Button: Many reels have a quick-release lever, button, or dial that you engage to twist and remove the sideplate.
Screw(s): Some models might have one or more small screws holding the sideplate in place.
External Adjustment Dial (Less Common for Pure Centrifugal): While some reels have external dials, these often control magnetic brakes or a hybrid system. Purely centrifugal systems typically require sideplate removal for initial setup.

Always consult your reel’s manual for the specific instructions on how to safely remove the sideplate. Be careful not to drop the sideplate, especially if you’re near water!

Setting Up Your Centrifugal Brakes: A Step-by-Step Guide

Once the sideplate is removed, you’ll see a set of small brake blocks, often mounted on pins around the spool shaft or a central hub. These blocks can typically be clicked “on” (engaged, so they can move outwards) or “off” (disengaged, so they remain retracted).

Start with More Brakes Engaged (The “Safe” Start):
- If you’re new to baitcasters, new to a particular reel, or are experiencing frequent backlashes, it’s wise to start with more brakes engaged. Many reels come with 4 or 6 brake blocks.
- Recommendation: Engage half or slightly more than half of the available brakes. For example, if your reel has 6 blocks, start with 3 or 4 turned “on.” If it has 4 blocks, start with 2 or 3 “on.”
- Symmetry is Key: Always try to engage brakes in a balanced, symmetrical pattern (e.g., opposite each other) if possible. This helps maintain spool balance, though it’s less critical with smaller numbers of blocks.
The Initial Test Cast:
- Securely reattach the sideplate.
- Tie on a practice plug or an average-weight lure you commonly use.
- Set your spool tension knob correctly. (This is a separate adjustment! The spool tension knob should be set so the lure falls slowly when you disengage the reel, and the spool stops with minimal or no overrun when the lure hits the ground).
- Make a firm, smooth overhead cast. Don’t try to launch it into orbit.
- Pay attention to how the lure flies and, most importantly, how the spool behaves.
Analyze and Adjust:
- Too Much Braking: If the cast feels overly controlled, significantly shorter than you’d expect, or the lure “balloons” upwards and plummets, you likely have too many brakes engaged.
  - Action: Remove the sideplate and turn “off” one brake block. Reattach and test again.
- Slight Overrun/Early Fluffing: If you notice the spool starting to fluff up slightly mid-cast or just as the lure is about to hit the water (but you can manage it with your thumb), you’re getting close. This is where fine-tuning comes in. You might be okay with this setting, or you could try turning off one more brake if you’re confident in your thumbing ability.
- Significant Backlash: If you experience a noticeable backlash, you need more braking.
  - Action: Remove the sideplate and turn “on” an additional brake block. Also, double-check your spool tension knob setting and your casting motion (avoid abrupt, jerky movements).
Fine-Tuning for Different Conditions and Lures:
- Lure Weight:
  - Heavier Lures: Generally require fewer brakes because their momentum helps keep the spool spinning without overrunning as easily.
  - Lighter Lures: Often require more brakes to prevent the spool from spinning too fast relative to the light lure’s ability to pull line.
- Wind Conditions:
  - Casting into Wind: You’ll likely need to engage more brakes to counteract the wind pushing against your lure and slowing it down, which can cause the spool to outpace the line.
  - Casting with Wind: You can often get away with fewer brakes, as the wind will help carry your lure and line.
- Your Skill Level: As your thumb becomes more adept at feathering the spool during a cast (your “educated thumb”), you can gradually reduce the number of centrifugal brakes engaged for maximum distance.
Iterative Process:
- Continue to adjust one brake block at a time (on or off) and test cast until you find the sweet spot where you achieve good distance with minimal risk of backlash for the specific lure and conditions.
- Remember to make smooth casts. Poor casting technique can cause backlashes even with perfectly set brakes.

Tips for Success:

Make Small Adjustments: Change one brake setting at a time to accurately gauge its effect.
Consistency is Key: Use a consistent casting motion when testing.
Spool Tension First: Always set your spool tension knob correctly before relying solely on the centrifugal brakes for major adjustments. The two systems work together.
Practice Your Thumb: Even with brakes, developing good thumb control is the ultimate backlash prevention tool. Lightly rest your thumb on the spool as the lure flies, ready to apply gentle pressure if you see line starting to fluff up.
Different Reels, Different Feels: Some reels have more aggressive braking systems than others. What works on one model might not be ideal for another.
Lost a Brake Block? It happens. Many manufacturers sell replacement brake blocks. In a pinch, some anglers have been known to disable the opposing block to maintain some balance, but replacing it is the best long-term solution.

Setting up your centrifugal brakes might take a few minutes of trial and error, but the payoff in casting performance and reduced frustration is well worth the effort. With a little practice, you’ll be dialing in your reel like a pro and enjoying significantly fewer bird’s nests on your fishing adventures.

Posted on by

Smooth Drags, More Fish: A Guide to Replacing Drag Washers in Your Ambassadeur Casting Reel

The iconic Abu Garcia Ambassadeur casting reel is a testament to enduring design and robust performance. A key component to its fish-stopping power is its drag system. Over time, however, drag washers can wear out, compress, or become contaminated, leading to jerky, inconsistent, or weak drag pressure. The good news is that replacing them is a straightforward maintenance task that can significantly improve your reel’s performance and longevity.

This guide will walk you through the process of replacing the drag washers in your Ambassadeur casting reel, ensuring you have the smooth, reliable drag needed to confidently battle your next trophy fish.

Why Replace Your Drag Washers?

Smoother Drag: New washers provide consistent pressure, eliminating the jerkiness that can lead to lost fish.
Increased Drag Power: Worn washers can slip. Fresh ones restore maximum drag capability.
Improved Longevity: Contaminated or degraded washers can damage other parts of the drag system.
Upgrade Opportunity: This is a great time to upgrade from stock washers to higher-performance aftermarket options like Carbontex or HT-100 for even better smoothness and durability.

Before You Begin: Gather Your Tools and Parts

Replacement Drag Washers:
- Compatibility: Ensure you have the correct size and type of drag washers for your specific Ambassadeur model (e.g., 5500, 6500, C3, C4). Consult your reel’s schematic or reputable reel parts suppliers.
- Material:
  - Felt/Fiber (Stock): Often come pre-greased. Good for general use.
  - Carbon Fiber (Carbontex, HT-100): Offer superior smoothness, power, and durability. Usually require a very light coat of specialized drag grease like Cal’s Tan, Deuthlon Power Drag Grease or Shimano Star Drag Grease if applied dry. Some come pre-greased.
Reel Schematic: Indispensable for seeing the correct order of washers. You can usually find these on the Abu Garcia website or fishing reel forums.
Small Phillips Head Screwdriver: For removing the handle-side plate screws.
Wrench for Handle Nut: Often a 10mm or 11mm wrench, or the one supplied with some Ambassadeur models.
Small Flat Head Screwdriver or Pick: Useful for removing e-clips or manipulating small parts.
Needle Nose Pliers: For handling small components.
Drag Washer Grease (if using ungreased carbon washers): Such as Cal’s Universal Reel & Drag Grease or Shimano Star Drag Grease. A very light application is key.
Cleaning Supplies: Isopropyl alcohol, cotton swabs, a small brush, and a clean cloth for cleaning old grease and debris.
A Well-Lit Workspace and a Container: To keep small parts organized and prevent loss.

Step-by-Step Replacement Guide

1. Prepare Your Workspace & Reel: * Lay down a clean cloth or mat. * Ensure your reel is free of line, or at least that the line won’t interfere. * Loosen the drag star completely by turning it counter-clockwise until it offers no resistance.

2. Remove the Handle Assembly: * Handle Nut Cap: If your reel has a small cap over the handle nut, carefully pry it off with a small flat-head screwdriver or pick. * Handle Nut Retainer: Remove the small screw holding the handle nut retainer plate (if present). * Handle Nut: Using the appropriate wrench (often 10mm or 11mm for many Ambassadeurs), unscrew the handle nut. Remember: typically, this unscrews in a standard counter-clockwise direction. * Handle: Lift the handle assembly straight off the drive shaft. * Drag Star: Slide the star-shaped drag adjuster off. Pay attention to any curved tension washers (“Belleville” or “spring” washers) underneath it; note their orientation (e.g., “() ()” or “( ) ( )”). This is critical for proper drag function. * Spacers/Bearings: Note any other spacers or bearings that might be on the drive shaft above the side plate.

3. Remove the Handle-Side Sideplate: * Carefully unscrew the two or three Phillips head screws that secure the handle-side (right side) plate to the reel frame. These are often called “thumb screws” if they are knurled for tool-less removal on some models, or standard screws on others. * Gently lift the side plate away from the frame. It might require a little wiggle. Be mindful of any shims or washers that may be present on the spool shaft or inside the side plate. The main gear, pinion gear, and drag stack may stay with the side plate or remain on the drive shaft.

4. Access and Disassemble the Drag Stack: * The drag stack is located within or around the main gear. * Carefully lift the main gear off the drive shaft (if it didn’t come off with the side plate). * The drag washers are a series of metal and non-metal (your drag material) washers stacked in a specific order within the main gear or around the drive shaft. * Crucial Step: Lay out the old drag washers in the exact order they come out. Take a photo with your phone before fully disassembling if you’re unsure. The sequence typically alternates between a metal washer and a drag material washer. Note the keyed metal washers (with “ears” that fit into slots in the main gear) and the round metal washers. * There’s usually a thick metal washer at the very bottom of the stack (inside the main gear) and often one on top, just under the gear sleeve or main gear.

5. Clean the Components: * Thoroughly clean the main gear, especially the recess where the drag washers sit. Use isopropyl alcohol and cotton swabs to remove all old grease, oil, and debris. * Clean the metal drag washers that you will be reusing (if your kit doesn’t replace all metal parts). Ensure they are smooth and free of burrs. If any metal washers are significantly warped or damaged, they should also be replaced.

6. Prepare and Install the New Drag Washers: * Greasing (if applicable): If you’re using carbon fiber washers like Carbontex and they came ungreased, apply an extremely light, even coat of specialized drag grease to each side of the carbon washers. You want just enough to make them look wet, not goopy. Too much grease can reduce drag pressure. Pre-greased stock felt washers usually don’t need additional grease. * Reassemble the Stack: Referring to your schematic (or the order you noted during disassembly), begin re-stacking the washers into the main gear or onto the drive shaft. * Typically, you start with a metal washer (often a keyed “eared” washer) at the bottom of the main gear. * Follow with a new (greased, if necessary) drag material washer. * Then another metal washer (this one might be round or keyed). * Continue alternating metal and drag material washers according to the schematic. * Ensure the keyed metal washers have their “ears” correctly seated in the slots inside the main gear. * The last washer on top of the stack before the gear sleeve or other components is usually a metal washer.

7. Reassemble the Reel: * Main Gear: Place the main gear (with the new drag stack installed) back onto the drive shaft in the frame, ensuring it meshes correctly with the pinion gear. * Handle-Side Sideplate: Carefully align the side plate with the frame and the drive shaft. Ensure any internal components or shims are correctly positioned. Gently press the sideplate into place. If it doesn’t sit flush, don’t force it; re-check alignment. * Secure the side plate with its screws. * Spacers/Bearings: Reinstall any spacers or bearings that sit above the side plate on the drive shaft. * Drag Star Spring Washers: Place the curved tension washers back onto the drive shaft in their original orientation (e.g., “() ()”). * Drag Star: Screw the drag star back on. * Handle Assembly: Reinstall the handle, handle nut, retainer (if present), and nut cap. Tighten the handle nut securely but don’t overtighten to the point of stripping threads.

8. Test the Drag: * Tighten the drag star. Pull line from the spool (if spooled) or try to turn the spool by hand while holding the handle. * The drag should engage smoothly and provide increasing resistance as you tighten the star. * If the drag feels jerky or weak, you may need to re-check the washer order, ensure keyed washers are seated, or that you haven’t over/under greased (if applicable).

Important Tips:

Take Your Time: Patience prevents lost parts and mistakes.
Schematic is Your Best Friend: Refer to it often, especially for washer order and spring washer orientation.
Keep it Clean: Contaminants are the enemy of a smooth drag.
Light Grease is Right Grease (for Carbon): For carbon washers, less is more.
Don’t Force Parts: If something doesn’t fit, re-evaluate.
Regular Maintenance: Consider cleaning and re-greasing your drag (if using greased carbon washers) annually or after heavy use or submersion to maintain peak performance.

Replacing the drag washers in your Ambassadeur is a rewarding task that will noticeably improve your fishing experience. With a smooth, reliable drag, you’ll be ready to tackle whatever bites next!

Posted on by

Quantum Pulse PL100S Reel Review

Quantum Pulse PL100S

The Quantum Pulse PL100S emerges as a distinguished contender in the realm of fishing reels, crafted for anglers who demand excellence and precision in their gear. This model is a testament to Quantum’s commitment to innovation, combining advanced technology with user-friendly features to enhance the fishing experience for both novice and seasoned anglers alike. The PL100S is not just a tool but an extension of the angler’s intent, designed to bridge the gap between aspiration and achievement in the pursuit of the ultimate catch.

At the core of the Quantum Pulse PL100S is its precision-engineered mechanism, which promises unparalleled smoothness and reliability on the water. The reel boasts a high-strength, magnetic brake system, meticulously calibrated to provide anglers with control and accuracy in their casts. This innovative braking system ensures that even the most lightweight lures can be cast with precision, making it an ideal choice for a variety of fishing techniques and conditions.

The power of the PL100S is equally impressive, featuring a robust gear system capable of handling the demands of big game fishing. The reel’s durability is enhanced by its corrosion-resistant components, ensuring that it performs consistently in both freshwater and saltwater environments. This resilience, combined with its power, makes the PL100S a versatile companion for any fishing expedition.

Quantum has prioritized ergonomics in the design of the Pulse PL100S, resulting in a reel that is not only powerful but also incredibly lightweight. This ergonomic design minimizes fatigue, allowing anglers to enjoy longer sessions on the water without discomfort. The compact frame and balanced architecture of the reel ensure a comfortable grip and easy handling, enhancing the overall fishing experience.

The PL100S also features a sleek, modern aesthetic that reflects the advanced technology it harbors. The attention to detail in its construction is evident, from the smooth finish to the intuitive placement of controls, all designed to facilitate ease of use and efficiency.

Quantum has equipped the Pulse PL100S with several advanced features that set it apart from the competition. One such feature is the instant anti-reverse system, which provides immediate hook-setting power without any back play in the handle. This instant engagement ensures that every opportunity for a catch is maximized, a crucial factor in competitive angling or when targeting elusive species.

Additionally, the PL100S boasts a ceramic drag system, offering smooth, consistent drag pressure throughout the entire range. This system is particularly beneficial when fighting powerful fish, as it allows for precise adjustments to drag settings on the fly, reducing the risk of line breakage.

The versatility of the Quantum Pulse PL100S is one of its most compelling attributes. Whether you’re casting to tight spots in freshwater lakes or battling the fierce runs of saltwater game fish, the PL100S adapts seamlessly to a variety of fishing scenarios. Its design accommodates a wide range of lure weights and line types, making it an excellent choice for anglers who employ multiple fishing techniques.

The Quantum Pulse PL100S represents a significant leap forward in fishing technology, offering a blend of power, precision, and ergonomics that sets a new standard in reel design. Its advanced features and versatile performance make it a valuable tool for anglers aiming to elevate their game. Whether you’re chasing personal bests or simply enjoying the peace of the great outdoors, the PL100S is designed to enhance your fishing experience, making every moment on the water count.

Posted on by

Daiwa Alpha Reels

Daiwa Alpha Reels

Daiwa, a name synonymous with excellence in the fishing industry, has been at the forefront of innovation. Crafting gear that enhances the fishing experience for anglers around the globe. Among its celebrated creations, the Alpha reels hold a special place, celebrated for their precision engineering, durability, and superior performance. Designed with the discerning angler in mind, Daiwa’s Alpha reels merge traditional craftsmanship with advanced technology, setting a high bar in the competitive world of fishing gear. This blog explores the journey, features, and enduring appeal of the Alpha series, a testament to Daiwa’s commitment to excellence.

The story of Daiwa’s Alpha reels is one of continuous innovation and refinement. Launched as part of Daiwa’s mission to provide anglers with cutting-edge fishing tools, the Alpha series has evolved from its initial models to incorporate a suite of technological advancements aimed at optimizing performance and user experience. Key milestones include the introduction of the Magforce V anti-backlash system, which revolutionized casting accuracy and control, and the development of ultra-lightweight materials that enhanced reel sensitivity and strength. This evolution reflects Daiwa’s dedication to pushing the boundaries of reel design, ensuring that each generation of Alpha reels offers something new and improved to the fishing community.

At the heart of Daiwa’s Alpha reels’ success are their distinctive features and advanced technology. The Magforce V system, a magnetic anti-backlash control, stands out for its innovative approach to improving casting accuracy and reducing the risk of line tangles. Additionally, the Alpha series reels are constructed using high-grade materials such as Zaion, a high-density carbon strain material that offers the optimum balance of weight, strength, and sensitivity. This focus on technology and materials ensures that Alpha reels provide a seamless and efficient fishing experience, allowing anglers to cast further, retrieve smoother, and enjoy their fishing adventures to the fullest.

Daiwa’s Alpha series encompasses a range of models, each tailored to specific fishing conditions and angler preferences. The Alpha SV, for instance, is designed for versatility and can handle a wide range of lure weights and types, making it ideal for both novice and experienced anglers. On the other hand, the Alpha Air model is engineered for lightweight lure casting, perfect for finesse fishing techniques. By comparing the specifications of these models, such as gear ratio, weight, and drag capacity, anglers can make informed decisions about which Alpha reel best suits their fishing style and target species.

The real-world performance of Daiwa’s Alpha reels has garnered widespread acclaim from both amateur and professional anglers. Users consistently praise the smoothness of the drag system, the balance and ergonomics of the reel design, and the durability that withstands the rigors of frequent use. Professional anglers, in particular, appreciate the precision and control offered by the Magforce V system, noting how it significantly enhances casting accuracy and efficiency. These testimonials underscore the Alpha series’ ability to deliver a superior fishing experience, making every cast count and every catch more rewarding.

To maximize the lifespan and performance of Daiwa Alpha reels, proper care and maintenance are essential. Regular cleaning after each use, especially in saltwater conditions, helps prevent corrosion and buildup. Lubricating moving parts with quality reel oil ensures smooth operation, while storing reels in a dry, cool place protects them from environmental damage. By adhering to these simple maintenance steps, anglers can keep their Alpha reels in prime condition, ready for their next fishing adventure.

Choosing the right fishing reel is crucial to the success and enjoyment of any fishing trip, and Daiwa’s Alpha reels offer an unparalleled combination of technology, performance, and durability. With their innovative features, robust construction, and proven track record, Alpha reels are an excellent choice for anglers who demand the best from their equipment. Whether you’re a seasoned pro or a weekend enthusiast, investing in a Daiwa Alpha reel is a step toward enhancing your fishing experience, promising precision, reliability, and satisfaction with every cast.

Posted on by

Daiwa Steez Series

Daiwa’s Steez series of fishing reels represents the pinnacle of reel technology and design, offering unmatched performance and durability to serious anglers. As Daiwa’s flagship line, the Steez series is renowned for its lightweight construction, precision engineering, and innovative features, setting a new standard in the fishing gear industry. Crafted for those who demand the best, these reels provide a competitive edge in various fishing conditions, from freshwater bass tournaments to inshore saltwater angling. This blog post delves into the legacy of the Steez series, exploring its evolution, key features, diverse product lineup, and the exceptional experiences it offers anglers around the globe. Join us as we uncover what makes the Daiwa Steez series a preferred choice among professional and recreational fishermen alike.

History and Evolution

The Daiwa Steez series was introduced as a revolution in fishing reel technology, designed to meet and exceed the expectations of the most demanding anglers. Since its inception, the Steez series has been at the forefront of innovation, embodying Daiwa’s commitment to providing high-quality, performance-driven fishing gear. The series’ evolution is marked by significant technological advancements and design refinements, aimed at enhancing angler performance and satisfaction.

From the very first model, the Steez series set a benchmark for lightweight and strong reels, utilizing Daiwa’s exclusive Zaion Carbon construction, which offers the rigidity and durability of metal at a fraction of the weight. Over the years, Daiwa has continued to innovate, introducing features like the Magsealed ball bearings and main shaft to prevent water and dirt intrusion, extending the reel’s life and maintaining its smooth performance.

The introduction of TWS (T-Wing System) in the casting models revolutionized line management and casting distance, reducing friction and improving accuracy. Each generation of Steez reels has built upon the success of its predecessors, integrating the latest in material science, gear design, and ergonomic features to deliver a seamless fishing experience. The Steez series’ journey from its groundbreaking debut to its current status as a symbol of excellence showcases Daiwa’s relentless pursuit of perfection in fishing technology.

Key Features and Technologies

Daiwa’s Steez series reels are a marvel of fishing technology, showcasing several proprietary features and advancements that underscore Daiwa’s leadership in reel innovation. A standout feature is the Zaion Carbon construction, which is central to the Steez’s design philosophy. Zaion offers the optimal balance between rigidity and lightweight performance, ensuring that the reels are both durable and easy to handle during long fishing sessions.

Another hallmark is the Magsealed technology, which employs magnetic oil to seal the reel from water and dust intrusion. This innovation significantly enhances the lifespan of the reel by protecting its internal components from the harsh elements encountered in both freshwater and saltwater environments.

The T-Wing System (TWS) represents a breakthrough in line management technology. By reducing the angle of the line on the cast, TWS minimizes friction and allows for longer, more accurate casts. This system is especially beneficial for anglers who demand precision and efficiency in their casting techniques.

Daiwa’s Steez series also features the Air Rotation system, which provides a silky-smooth feel when reeling in line. This system is a result of precise engineering, allowing for minimal resistance and maximum sensitivity, enabling anglers to detect even the slightest nibbles.

The integration of the SV Concept in certain models further enhances the Steez’s performance. The SV spool is designed to accommodate a wide range of lure weights without the need for constant adjustments, making it incredibly versatile for various fishing conditions and techniques.

Product Range and Specifications

The Daiwa Steez series encompasses a diverse lineup of reels, each designed to cater to specific angling preferences and techniques. The series includes spinning reels, baitcasting reels, and even specialized models for specific fishing scenarios.

The Steez CT SV, for example, is a baitcasting reel designed for precision casting of lightweight lures, featuring the innovative SV spool and Air Brake system for optimal control. Its compact design and light weight make it ideal for finesse fishing techniques.

For those who prefer spinning reels, the Steez EX offers unparalleled smoothness and durability, thanks to its Zaion body and Magsealed bearings. Its lightweight construction does not compromise on strength, providing anglers with the confidence to tackle large fish.

The Steez A TW is another highlight, offering advanced baitcasting technology with the T-Wing System and a rigid aluminum frame for maximum stability under stress. This model is suitable for a wide range of fishing applications, from bass fishing to inshore saltwater angling.

Specifications across the Steez series vary, with gear ratios ranging from ultra-fast to more moderate speeds, accommodating different fishing styles and preferences. Drag systems are top-notch, with some models offering up to 20 pounds of drag pressure, ensuring that anglers have the power to land big fish.

User Experience and Performance

Anglers who have used the Daiwa Steez series often speak highly of their experiences, citing the reels’ exceptional performance and reliability. The lightweight construction is frequently praised, allowing for effortless handling and reducing fatigue during long days on the water. Many users are impressed by the smoothness of the retrieve, attributing it to the high-quality bearings and precise engineering.

The casting distance and accuracy provided by the T-Wing System and SV spool technology are also points of satisfaction, enabling anglers to target fish more effectively and with greater precision. The durability of the Steez reels, enhanced by Magsealed technology, is noted as a significant advantage, especially for those who fish in diverse and challenging environments.

Professional anglers and fishing enthusiasts alike commend the Steez series for its versatility, covering everything from light freshwater applications to more demanding saltwater conditions. The consensus among users is that Daiwa’s Steez reels offer a competitive edge, combining advanced technology, superior design, and unmatched performance.

Maintenance and Care

To ensure the Steez series reels maintain their top-tier performance, regular maintenance is crucial. After each use, it’s recommended to gently rinse the reel with freshwater and dry it thoroughly. Periodic lubrication of moving parts with appropriate reel oil and grease is essential to keep the mechanisms running smoothly. Daiwa also advises checking for any signs of wear or damage, especially after heavy use or exposure to saltwater. Professional servicing is recommended at least once a year to ensure the reel’s longevity and to maintain its high-performance standards.

Daiwa’s Steez series of fishing reels epitomizes the zenith of reel technology and performance, offering anglers an unmatched fishing experience. Through innovative design, cutting-edge technology, and meticulous craftsmanship, the Steez series stands as a testament to Daiwa’s commitment to excellence in the angling world. Whether you’re a competitive angler seeking an edge in tournaments or a passionate fisherman looking for reliability and performance, the Steez series delivers on all fronts. With a range of models to suit various fishing styles and environments, Daiwa ensures that every angler can find a Steez reel that fits their needs perfectly. As we’ve explored the legacy, technology, and user experiences of the Steez series, it’s clear that Daiwa continues to set the standard for what fishing reels can achieve, enhancing the angling experience for fishermen around the globe.
